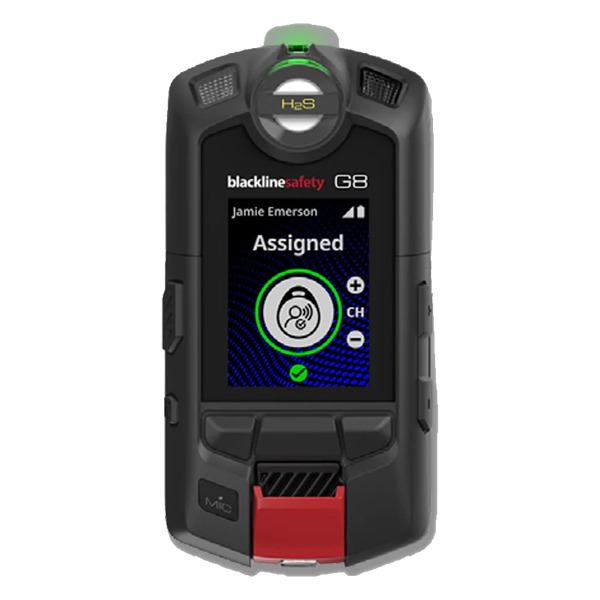

Blackline Safety G8 Portable Gas Detector

The Blackline Safety G8 Portable Gas Detector is a connected safety wearable designed to combine multi-gas detection, lone worker protection, real-time communication, and cloud-connected visibility in one portable device. Built for demanding industrial environments, the G8 helps teams monitor gas exposure, worker status, location, and safety events in real time, supporting faster response when hazardous conditions or emergencies occur.

With flexible cartridge options, the Blackline Safety G8 can be configured for single-gas, multi-gas diffusion, multi-gas pumped, or lone worker applications. Cartridge selection supports up to four sensors and up to five gases, with access to a wide sensor range for applications involving toxic gases, oxygen, combustible gases, VOCs, and other hazardous gas risks.

At Westech Industrial, we supply and support the Blackline Safety G8 across Manitoba, Saskatchewan, Ontario, Quebec, New Brunswick, Newfoundland and Labrador, Nova Scotia, and Prince Edward Island. Our team can assist with product selection, configuration, application support, service requirements, and integration into broader safety programs. For facilities requiring more complete safety solutions, Westech also provides custom fabrication capabilities to support packaged systems, safety panels, shelters, and integrated site solutions.

Blackline Safety Portable G8

Quantity

PRODUCT FEATURES

REQUEST FOR INFORMATION

Description

Connected Multi-Gas Detection

The G8 portable gas detector helps teams monitor gas hazards while maintaining real-time visibility into worker safety. Depending on the selected cartridge, the device supports up to four sensors and up to five gases. As a result, workers can carry one connected device for multiple safety functions. This helps reduce equipment complexity while improving access to gas exposure data.

Flexible Cartridge Options

The G8 supports swappable cartridge options for lone worker, single-gas, multi-gas diffusion, and multi-gas pumped applications. Therefore, teams can configure the device for different roles, sites, and monitoring requirements.

Wide Sensor Selection

The G8 offers a broad gas cartridge and sensor table for varied industrial applications. Available sensors include oxygen, carbon monoxide, hydrogen sulfide, carbon dioxide, ammonia, chlorine, sulfur dioxide, nitrogen dioxide, ozone, LEL-IR, LEL-MPS, and Photoionization (PID).

Real-Time Safety Visibility

With direct-to-cloud data sharing, the G8 helps teams see events as they happen. Blackline Live supports safety monitoring, device configuration, alert management, map location, and event history. As a result, supervisors can respond faster when a gas alarm or safety event occurs. This connected visibility also helps teams identify risks before they become larger operational issues.

Lone Worker Protection

The G8 portable gas detector also supports workers operating alone or in high-risk areas. It provides emergency SOS alerts, fall detection, no-motion alerts, missed check-in notifications, and proximity-based alerts. Therefore, teams can receive important safety notifications even when a worker cannot call for help directly.

Built-In Communication Tools

Optional push-to-talk functionality allows users to send and receive voice communications with other G8 devices. In addition, two-way talking and messaging help workers coordinate during routine tasks and emergency events. These communication tools can reduce delays and improve teamwork across larger facilities or remote work areas.

Location Awareness with Dual-Band GNSS

The G8 includes multi-constellation location support and a dual-band GNSS receiver. This helps improve worker location visibility across complex worksites. In turn, response teams can act with better situational awareness during alarms, incidents, or emergency calls.

Data, Reporting, and Compliance Support

Blackline Analytics gives teams access to centralized device data, exposure records, alerts, usage information, and event history. It also supports bump test and calibration records with downloadable certificates. Therefore, the platform can help simplify compliance review, reporting, and safety program improvement.

Built for Industrial Environments

The G8 uses a polycarbonate body over molded with static dissipative thermoplastic elastomer. It is also IP67 certified and rated for hazardous locations. As a result, the G8 portable gas detector is well suited for demanding industrial environments where connected safety is critical.

Applications

The Blackline Safety G8 Portable Gas Detector is suited for industrial, municipal, and emergency response environments where connected gas detection and worker safety visibility are required.

Common applications include:

  • Oil and gas operations
  • Petrochemical facilities
  • Manufacturing and processing plants
  • Municipal water and wastewater facilities
  • Fire departments and emergency response teams
  • Maintenance teams and turnaround crews
  • Lone worker applications
  • Confined space and pumped sampling applications
  • OEM and packaged safety systems
  • Custom-fabricated safety solutions and site packages

Documents

BlacklineSafety_G8 Portable Gas Detector_Data Sheet_June2026_Westech.pdf

Blackline_G8 Lone Worker Brochure_MAR2026_WESTECH.pdf

Blackline_G8 Multi Gas Brochure_MAR2026_WESTECH.pdf

Manufacturer info

A leading supplier of wirelessly connected gas detection and lone worker monitoring products in the world. They offer the broadest and most complete portfolio available anywhere.

Website: https://www.blacklinesafety.com

SPECS

Product:
Blackline Safety G8 Portable Gas Detector.
Device Type:
Connected safety wearable with gas detection, lone worker protection, communication, location awareness, and cloud-connected safety monitoring.
Material:
Polycarbonate over molded with static dissipative thermoplastic elastomer (TPE).
Cartridge Configurations:
Standard cartridge, single-gas cartridge, multi-gas diffusion cartridge, and multi-gas pumped cartridge.
G8 with Standard Cartridge:
Size: 122 mm x 65 mm x 42 mm (4.8" x 2.56" x 1.65"); Weight: 207 g (7.30 oz).
G8 with Single-Gas Cartridge:
Size: 127 mm x 65 mm x 42 mm (5.0" x 2.56" x 1.65"); Weight: 212 g (7.48 oz).
G8 with Multi-Gas Diffusion Cartridge:
Size: 149 mm x 66 mm x 42 mm (5.87" x 2.6" x 1.65"); Weight: 247 g (8.71 oz).
G8 with Multi-Gas Pumped Cartridge:
Size: 149 mm x 66 mm x 42 mm (5.88" x 2.6" x 1.65"); Weight: 265 g (9.35 oz).
Storage Temperature:
-30°C to 60°C (-22°F to 140°F).
Operating Temperature:
-20°C to 55°C (-4°F to 131°F).
Charging Temperature:
0°C to 40°C (32°F to 104°F).
Humidity:
15–90% RH, non-condensing.
IP Rating:
IP67 certified.
Sensors:
Cartridge selection supports up to 4 sensors and up to 5 gases.
Sound Level:
Speaker sound pressure level approximately 95 dB @ 30 cm (~95 dB @ 11.8”).
Battery:
Rechargeable Li-ion battery, 1350 mAh.
Charge Time:
4 hours.
Battery Life:
Up to 24 hours in diffusion mode at 20°C (68°F) with LEL-IR or LEL-MPS, H₂S, CO, and O₂ cartridge under normal connectivity conditions.
Location Awareness:
Multi-constellation support: GPS, Galileo, GLONASS, QZSS, BeiDou.
GNSS Receiver:
Dual-band L1 and L5 GNSS receiver.
Assisted GNSS:
Yes.
Cellular, North America Variant:
4G LTE bands: 71, 12, 13, 14, 5, 2, 66, 4.
Cellular, EU/AZ Variant:
4G LTE bands: 12, 13, 18, 19, 20, 26, 5, 8, 28, 2, 3, 1, 4, 7, 38, 39, 40, 41; 3G UMTS bands: 5, 8, 1, 2; 2G GSM bands: 5, 8, 3, 2.
Bluetooth:
Complies with Bluetooth Core Specification version 4.2 including BR/EDR/Bluetooth LE.
NFC Tag Reading:
13.56 MHz.
Wireless Updates:
Over-the-air device configurations and over-the-air firmware upgrades.
Display:
2.13”, 240 x 320 pixel graphical, high-contrast, 64-bit colour LCD with front lighting.
Controls:
Three-button keypad, side up/down keys, push-to-talk button, flashlight button, and SOS latch.
Flashlight:
5000K CCT, 35 lumens.
SOS Latch:
Sends emergency SOS alert.
Languages:
EN, FR, ES, DE, IT, NL, PT.
Optional Communication Feature:
Push-to-talk: send and receive voice communications with other G8 devices.
Remote Mic (Optional):
Two-way microphone accessory.
Accessories:
Dock, remote mic, location beacon, multi-unit charger.
Blackline Live:
Cloud-hosted safety monitoring, device configuration, real-time alert management, map location, event history with notes, over-the-air configuration and profile management. SOC2 Type 1 compliant.
Blackline Analytics:
Centralized device data, historical event and alert logs, usage records, exposure data, bump test records, calibration records, and downloadable certificates.
Canada and USA Approvals:
Class I Division 1 Group A, B, C, D T4; Class I Zone 0 AEx ia IIC T4; Ex ia IIC T4 Ga.
LEL Performance:
CSA C22.2 No.152; ISA 12.13.01; 60079-29-1.
Additional Approvals / Standards:
CE/RoHS; IECEx: Ex ia IIC T4 Ga; ATEX: Ex ia IIC T4 Ga.
Warranty, Purchase:
2 years on base, cartridge, and sensors, with option to extend up to 5 years.
Warranty, Blend:
2 years on base; cartridge and sensors for the entire term.
Warranty, Lease:
Entire lease term.
Ammonia (NH₃) Sensor:
Electrochemical; Range: 0–100 ppm; Resolution: 0.1 ppm.
Carbon Dioxide (CO₂) Sensor:
NDIR; Range: 0–50,000 ppm; Resolution: 50 ppm.
Carbon Monoxide (CO) Sensor:
Electrochemical; Range: 0–500 ppm; Resolution: 1 ppm.
Chlorine (Cl₂) Sensor:
Electrochemical; Range: 0–20 ppm; Resolution: 0.1 ppm; not compatible with pump cartridge.
Chlorine Dioxide (ClO₂) Sensor:
Electrochemical; Range: 0–2 ppm; Resolution: 0.01 ppm; not compatible with pump cartridge.
COSH (CO & H₂S) Sensor:
Electrochemical; Range: 0–500 ppm CO and 0–200 ppm H₂S; Resolution: 1 ppm CO and 0.1 ppm H₂S.
High-Range Ammonia (NH₃) Sensor:
Electrochemical; Range: 0–500 ppm; Resolution: 1 ppm.
High-Range Carbon Monoxide (CO) Sensor:
Electrochemical; Range: 0–2000 ppm; Resolution: 1 ppm.
High-Range Hydrogen Sulfide (H₂S) Sensor:
Electrochemical; Range: 0–500 ppm; Resolution: 0.5 ppm.
Hydrogen (H₂) Sensor:
Electrochemical; Outside North America; Range: 0–40,000 ppm; Resolution: 1% LEL / 400 ppm H₂.
Hydrogen Cyanide (HCN) Sensor:
Electrochemical; Range: 0–30 ppm; Resolution: 0.1 ppm.
Hydrogen Fluoride (HF) Sensor:
Electrochemical; Range: 0–10 ppm; Resolution: 0.1 ppm; not compatible with pump cartridge.
Hydrogen Resistant Carbon Monoxide (CO-H) Sensor:
Electrochemical; Range: 0–500 ppm; Resolution: 1 ppm.
Hydrogen Sulfide (H₂S) Sensor:
Electrochemical; Range: 0–100 ppm; Resolution: 0.1 ppm.
LEL-Infrared (LEL-IR) Sensor:
NDIR; Range: 0–100% LEL; Resolution: 1% LEL.
LEL-Molecular Property Spectrometer (LEL-MPS) Sensor:
MPS; Range: 0–100% LEL; Resolution: 1% LEL; operating pressure 80 to 120 kPa (11.6 psi to 17.4 psi).
Nitrogen Dioxide (NO₂) Sensor:
Electrochemical; Range: 0–50 ppm; Resolution: 0.1 ppm.
Oxygen (O₂) Sensor:
Pumped electrochemical; Range: 0–25% vol; Resolution: 0.1% vol.
Ozone (O₃) Sensor:
Electrochemical; Range: 0.1 ppm; Resolution: 0.1 ppm; not compatible with pump cartridge.
Photoionization (PID) Sensor:
PID; Range: 0–4,000 ppm; Variable resolution dependent on correction factor, lowest 0.1 ppm.
Sulfur Dioxide (SO₂) Sensor:
Electrochemical; Range: 0–100 ppm; Resolution: 0.1 ppm.
Availability Through Westech Industrial:
MB, ON, QC, NB, NL, NS, PEI, SK.

Related products

PRODUCT FAQ's

What gases can the Blackline Safety G8 detect?
The Blackline Safety G8 can be configured with a wide range of gas cartridge and sensor options, including gas cartridges for oxygen, carbon monoxide, hydrogen sulfide, carbon dioxide, ammonia, chlorine, sulfur dioxide, nitrogen dioxide, ozone, LEL-IR, LEL-MPS, and Photoionization (PID), along with other gas cartridge options. The available sensor options include electrochemical, NDIR, MPS, Pumped Electrochemical, and PID sensors. Cartridge selection supports up to four sensors and up to five gases.
Is the Blackline Safety G8 a multi-gas detector?
Yes. The G8 can be configured as a single-gas detector, multi-gas diffusion detector, or multi-gas pumped detector depending on the cartridge selected. This flexibility allows one platform to support many different gas detection applications.
Does the Blackline Safety G8 support lone worker safety?
Yes. The G8 includes connected safety features for lone worker protection, including SOS alerts, fall detection, no-motion alerts, missed check-in alerts, location awareness, and real-time notifications through the Blackline platform.
Can the G8 be used for real-time monitoring?
Yes. The G8 connects to Blackline Live for cloud-hosted safety monitoring, real-time alert management, device configuration, map location visibility, event history, and over-the-air profile management.
Does the Blackline Safety G8 support compliance reporting?
Yes. Blackline Analytics provides access to centralized device data, historical event and alert logs, exposure data, usage records, bump test records, calibration records, and downloadable certificates to support audits and compliance review.
Is push-to-talk available on the Blackline Safety G8?
Yes. Push-to-talk is available as an optional feature, allowing users to send and receive voice communications with other G8 devices. A remote microphone accessory is also available.
Can Westech Industrial help configure and support the Blackline Safety G8?
Yes. Westech Industrial can assist with product selection, configuration support, application review, service requirements, and ongoing support for the Blackline Safety G8 in Manitoba, Ontario, Quebec, New Brunswick, Newfoundland and Labrador, Nova Scotia, and Prince Edward Island.
Can the Blackline Safety G8 be included in a custom safety solution?
Yes. For facilities requiring a broader approach to gas detection and worker safety, Westech Industrial can support the Blackline Safety G8 as part of a larger safety program or integrated solution. Westech also offers custom fabrication capabilities for packaged systems, panels, shelters, and site-specific industrial safety solutions where portable gas detection is part of the overall application.
