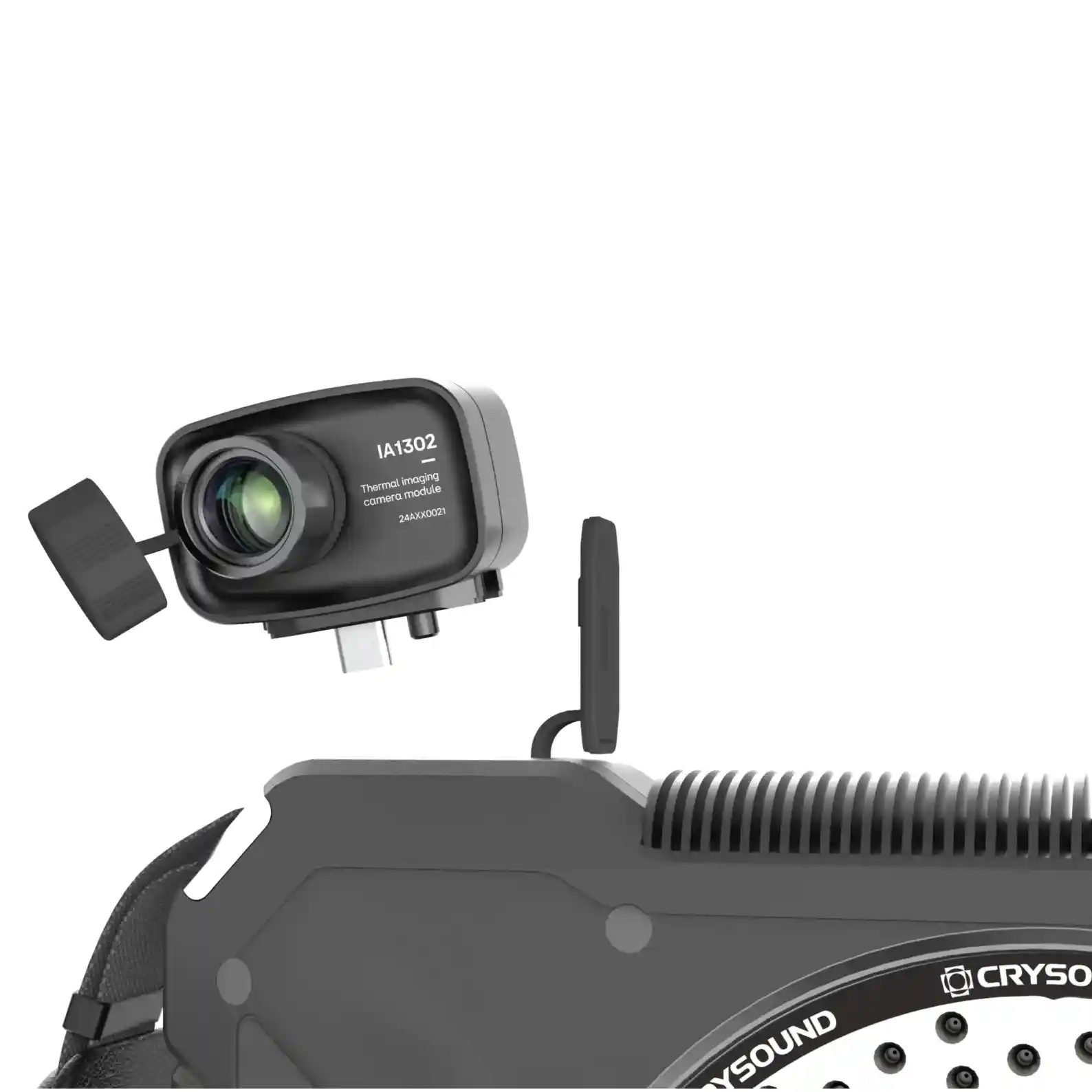

The CRYSOUND IA1302 Thermal Imaging Camera Module adds infrared thermal imaging capabilities to CRY8120 Series acoustic imaging cameras. It allows maintenance teams to view equipment temperature distribution while conducting acoustic inspections.
By combining acoustic and thermal information, operators can investigate two important equipment conditions during the same inspection. Acoustic imaging helps locate abnormal sound sources. Meanwhile, thermal imaging highlights unusual temperature patterns that may indicate developing equipment problems.
The IA1302 provides 640 × 512 thermal resolution and a 32.9° × 26.6° thermal field of view. Its higher resolution provides detailed thermal images for equipment inspection and condition assessment.
The module can help identify overheating electrical components, abnormal temperatures in rotating equipment and heat loss from industrial systems. It can also support inspections for insulation defects and thermal anomalies.
Operators can capture high-resolution thermal images and record thermal video. They can also incorporate inspection information into reports for maintenance planning and documentation.
Compared with the IA1301, the IA1302 provides both higher thermal resolution and a wider thermal field of view. The IA1301 offers 384 × 288 resolution and a 28.4° × 21.4° field of view. Therefore, the IA1302 suits applications that require greater image detail or broader thermal coverage.
Westech Industrial offers CRYSOUND acoustic and thermal imaging solutions for industrial inspection applications across Canada. Our team can help evaluate your inspection requirements and determine which accessories suit your application. Westech also provides technical support, engineering, integration and custom fabrication for broader industrial monitoring and control projects.
Quantity
PRODUCT FEATURES
REQUEST FOR INFORMATION
Description
Product Features
Add Thermal Imaging to CRY8120 Series Acoustic Inspections
The IA1302 thermal imaging module expands the capabilities of compatible CRYSOUND CRY8120 Series acoustic imaging cameras.
Acoustic imaging provides valuable information about leaks, partial discharge and abnormal equipment sounds. However, temperature can provide another important indicator of equipment condition.
Adding the IA1302 allows operators to collect acoustic and temperature information during the same inspection. This approach can provide a more complete view of equipment condition without requiring separate inspection workflows.
Maintenance teams can compare thermal observations with acoustic findings. As a result, they gain additional information when evaluating potential faults or deciding whether equipment requires further investigation.
High-Resolution 640 × 512 Thermal Imaging
The IA1302 provides a 640 × 512 thermal resolution for detailed infrared inspection.
Higher thermal resolution helps operators see smaller temperature differences and identify specific areas of abnormal heating. This capability can prove useful when inspecting electrical connections, mechanical components and other industrial equipment.
The IA1302 also provides a 32.9° × 26.6° thermal field of view. This wider field of view helps operators capture more of the surrounding equipment within a thermal image.
Together, the resolution and field of view support both detailed assessment and efficient inspection of larger equipment areas.
Identify Electrical Overheating Before Equipment Failure
Electrical equipment can develop abnormal temperature increases before a failure occurs.
The IA1302 helps operators inspect transformers, switchgear, circuit breakers, busbars and cable connections for unexpected heat patterns.
Loose electrical connections, overloads and aging insulation can create temperature changes. Thermal imaging makes these patterns visible during an inspection.
Maintenance teams can use this information to identify areas requiring additional investigation. Consequently, they can address developing problems before they contribute to equipment failure or unplanned downtime.
Monitor Motors, Bearings, Pumps and Compressors
The IA1302 also supports thermal condition monitoring for mechanical equipment.
Operators can inspect motors, bearings, pumps, compressors and gearboxes for abnormal temperature patterns. These changes can help draw attention to equipment requiring further assessment.
<p “>Potential causes may include component wear, insufficient lubrication or material aging.
Combining thermal information with acoustic inspection data provides maintenance teams with additional context. This combination can support predictive maintenance programs and help prioritize equipment requiring closer attention.
Locate Heat Loss, Insulation Problems and Thermal Anomalies
Thermal imaging provides a fast way to visualize where equipment or systems lose heat.
The IA1302 can support inspections of steam pipelines, heating networks and insulation systems. Operators can identify abnormal temperature patterns, possible insulation defects and areas of heat loss.
These thermal images help maintenance teams locate problem areas more efficiently. They can then use the information when planning repairs or further diagnostic work.
Capture Thermal Images and Video
The IA1302 supports high-resolution infrared photography and thermal video recording.
Operators can capture equipment conditions while conducting field inspections. This capability provides a visual record that maintenance teams can review after completing the inspection.
Stored thermal information can also help teams communicate findings to maintenance personnel, engineering teams and other stakeholders.
Combine Thermal and Acoustic Data in Inspection Reports
The IA1302 supports a more complete inspection workflow by bringing thermal and acoustic information together.
Thermal images and acoustic inspection data can be centrally managed and analyzed. Operators can also incorporate the information into inspection reports.
Combining both datasets gives maintenance teams a clearer record of equipment condition. It also helps standardize inspection documentation and simplifies sharing results for maintenance planning.
Higher Resolution and Wider Coverage Than the IA1301
CRYSOUND offers both IA1301 and IA1302 thermal imaging modules.
The IA1301 provides 384 × 288 thermal resolution with a 28.4° × 21.4° field of view.
The IA1302 increases thermal resolution to 640 × 512 and expands the field of view to 32.9° × 26.6°.
Therefore, the IA1302 provides an advantage when applications require greater thermal detail or wider scene coverage.
Applications
Applications
Electrical Equipment Inspection
Identify abnormal heating in transformers, switchgear, circuit breakers, busbars and cable connections.
Predictive Maintenance
Combine temperature information with acoustic inspection data to support equipment condition assessment and maintenance planning.
Motors and Rotating Equipment
Monitor motors, bearings, pumps, compressors and gearboxes for unusual temperature patterns.
Steam and Heating Systems
Inspect steam pipelines and heating networks for heat loss, leaks and abnormal temperature distribution.
Insulation Inspection
Locate insulation defects and areas where unexpected heat loss may require maintenance attention.
Industrial Equipment Condition Monitoring
Use thermal and acoustic information together to gain additional insight into equipment operating conditions.
Inspection Documentation
Capture thermal images and video while creating inspection records for analysis, reporting and maintenance follow-up.
Manufacturer info
CRYSOUND develops advanced acoustic imaging and measurement technologies that help industrial teams detect gas leaks, identify partial discharge, and troubleshoot equipment more efficiently. Its portable acoustic cameras combine high-sensitivity detection, intuitive imaging, and reporting tools for safer, more effective industrial inspections.
