Simplifying Multi-Stage Pressure Switching in Nitrogen Compression Packages
Nitrogen compression systems are critical across energy operations—from inerting and purging to blanketing and maintenance support. However, system performance ultimately depends on one key factor: delivering nitrogen at the right pressure, consistently, across every stage of the process.
For OEMs and operators designing or maintaining nitrogen generation and high-pressure compression packages, pressure switching is required at multiple control points. When these decisions are repeated throughout a system, small inefficiencies can quickly become costly.
At Westech Industrial, we work with customers across Western Canada to simplify pressure switching strategies—helping reduce complexity, improve reliability, and support long-term performance.
The Challenge: Pressure Control Across Multiple Stages

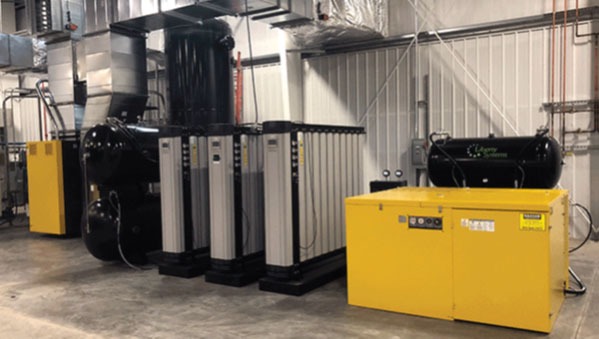

High-pressure nitrogen compression systems typically include several critical pressure-switching locations:
- Booster inlet pressure to prevent unnecessary activation
- Booster outlet pressure to prevent over-pressurization
- Desiccant dryer outlet pressure to protect moisture removal systems
These are essential control points that directly impact system safety, equipment protection, and operational efficiency.
However, the challenge often lies not in the need for measurement—but in how that measurement is implemented.
Common Pitfall: Over-Specifying Instrumentation
In many systems, pressure transmitters with dual-switch outputs are used—even when only a single switching function is required.
While this may seem like a robust approach, it can introduce several challenges:
Higher upfront equipment costs
- Longer lead times impacting project timelines
- Increased wiring and programming complexity
- More potential failure points in the control architecture
- Reduced reliability due to unnecessary system complexity
When repeated across multiple stages, these inefficiencies can significantly impact build quality, commissioning time, and long-term maintenance.
A Smarter Approach: Fit-for-Purpose Pressure Switching
A more effective strategy is to select instrumentation that matches the exact application requirements—no more, no less.

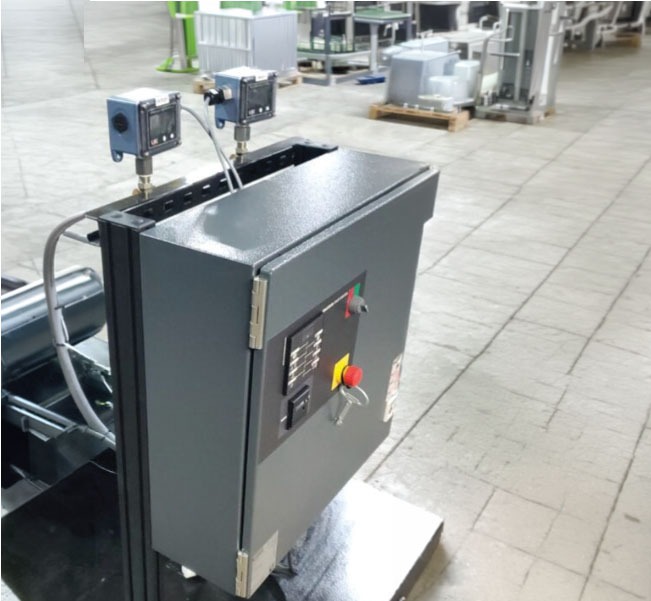

In one high-pressure nitrogen compression application, standardizing on a fit-for-purpose electronic pressure switch allowed for:
- One device per required control point
- Simplified architecture across the entire system
- Consistent and repeatable configuration

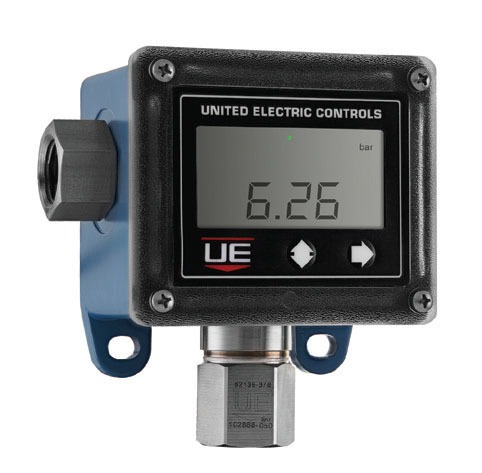

Modern electronic pressure switches can provide:
- Digital displays for clear setpoint visibility
- LED status indication for quick diagnostics
- Adjustable deadband for stable control
- Built-in self-diagnostics
- Two-wire configurations that simplify installation
By removing unnecessary functionality, systems become easier to design, integrate, and maintain.
The Results: Improved Reliability and Reduced Complexity
Simplifying pressure switching architecture can deliver measurable operational benefits:
- Lower component costs
- Faster installation and commissioning
- Reduced wiring and programming requirements
- Improved system reliability with fewer failure points
- Easier troubleshooting and maintenance
For OEMs building multiple units, standardization also improves scalability and consistency across production.
Why It Matters for Energy Applications
In energy environments, nitrogen systems are often used in critical applications where downtime is not an option.
Overly complex instrumentation strategies can create hidden risks, including:
- Increased failure rates
- Longer commissioning cycles
- More difficult troubleshooting in the field
A streamlined pressure switching approach helps ensure systems remain reliable, repeatable, and easier to support over their full lifecycle.
How Westech Industrial Supports Your Application
Westech Industrial is a trusted distributor of pressure and instrumentation solutions across Alberta, British Columbia, and Saskatchewan, supporting both OEMs and end users in the energy sector.
We help customers:
- Select the right pressure switching technology based on application requirements
- Standardize instrumentation across packages to reduce variability
- Simplify system design to improve reliability and reduce costs
- Provide product support to assist with application questions, setup, troubleshooting, and long-term use
- Support commissioning and troubleshooting to minimize downtime
- Plan for lifecycle maintenance and spare parts management
Whether you're designing a new nitrogen compression package or optimizing an existing system, our team can help identify opportunities to reduce complexity, improve performance, and support your equipment over the long term.
You could also make it a little stronger and more Westech-focused like this:
How Westech Industrial Supports Your Application
Westech Industrial is a trusted distributor of pressure and instrumentation solutions across Alberta, British Columbia, and Saskatchewan, supporting both OEMs and end users in the energy sector.
Our team helps customers with:
- Application review and product selection based on pressure ranges, switching logic, installation requirements, and operating conditions
- Standardization strategies to reduce variation across packages and simplify spare parts planning
- Product support for installation, operation, troubleshooting, and ongoing use
- Commissioning support to help improve startup efficiency and reduce downtime risk
- Lifecycle planning for replacements and critical spares across single or multi-site operations
Whether you're designing a new nitrogen compression package or optimizing an existing system, Westech can help simplify pressure switching architecture while providing the product support needed to keep systems operating reliably.
